503.15.731

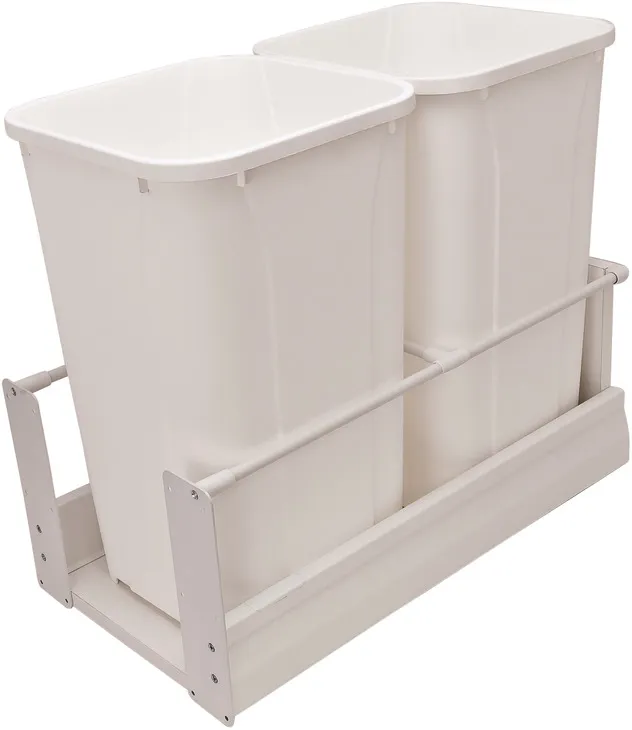

Waste Bin Pull-Out, Matrix, Double, 2 x 27 qt
Frame: white, bottom and back: white melamine, bin: white
Double wall steel frame system provides heavy duty structure and a stylish design. Unit comes pre-assembled with bins included. Melamine Bottom and Back with Edgebanding. Add your door thickness for inset applications. Type of pull out: Full extension progressive action runners. Load bearing capacity: 110 lbs. Installation: Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge). Supplied with: Mounting screws, Mounting instructions.
$352.50
Each.
What it fits
- Base cabinets, 18, 21, 24, 27, 30, 33 and 36 inch
- Sink base cabinets, 30, 33 and 36 inch
- Full height door base cabinets, 18, 21, 24, 30 and 36 inch
- Opening it needs
- At least 13.5" wide, 21.81" deep, 19.25" tall
- Häfele says
- Soft & Silent.
- Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge).
Checked for framed cabinets. Frameless ones have a little more room.
Goes well with it
Goes with it, sold separately: Replacement Waste Bin, for Wire and Wood Framed Waste Pull-Out Units.
Build a list, then send it over. Nothing is charged.
What you are getting
- Checked against our cabinets, so you know before you buy what it fits
- About a week to get here
- We can put it in when we install your cabinets
